VST3 / CLAP 64-BIT PLUGIN

ManQ-PsyGate

Advanced Multi-Lane Rhythmic Trance Gate, Modular Filter & Synthesis Engine

⬇ Download VST3 (.zip) ⬇ Download CLAP (.zip) ⬇ User Manual (PDF) 📖 Online Manual
Audio Engine
64-Bit Native Rust
Sequencer Grid
64 Steps (6 Lanes)
Modulator Rack
8 Dynamic Slots
Matrix Routing
6 Transfer Curves
Filter Topology
ZDF Analog (6-48 dB)
Latency Rating
0 Samples (Zero-Latency)

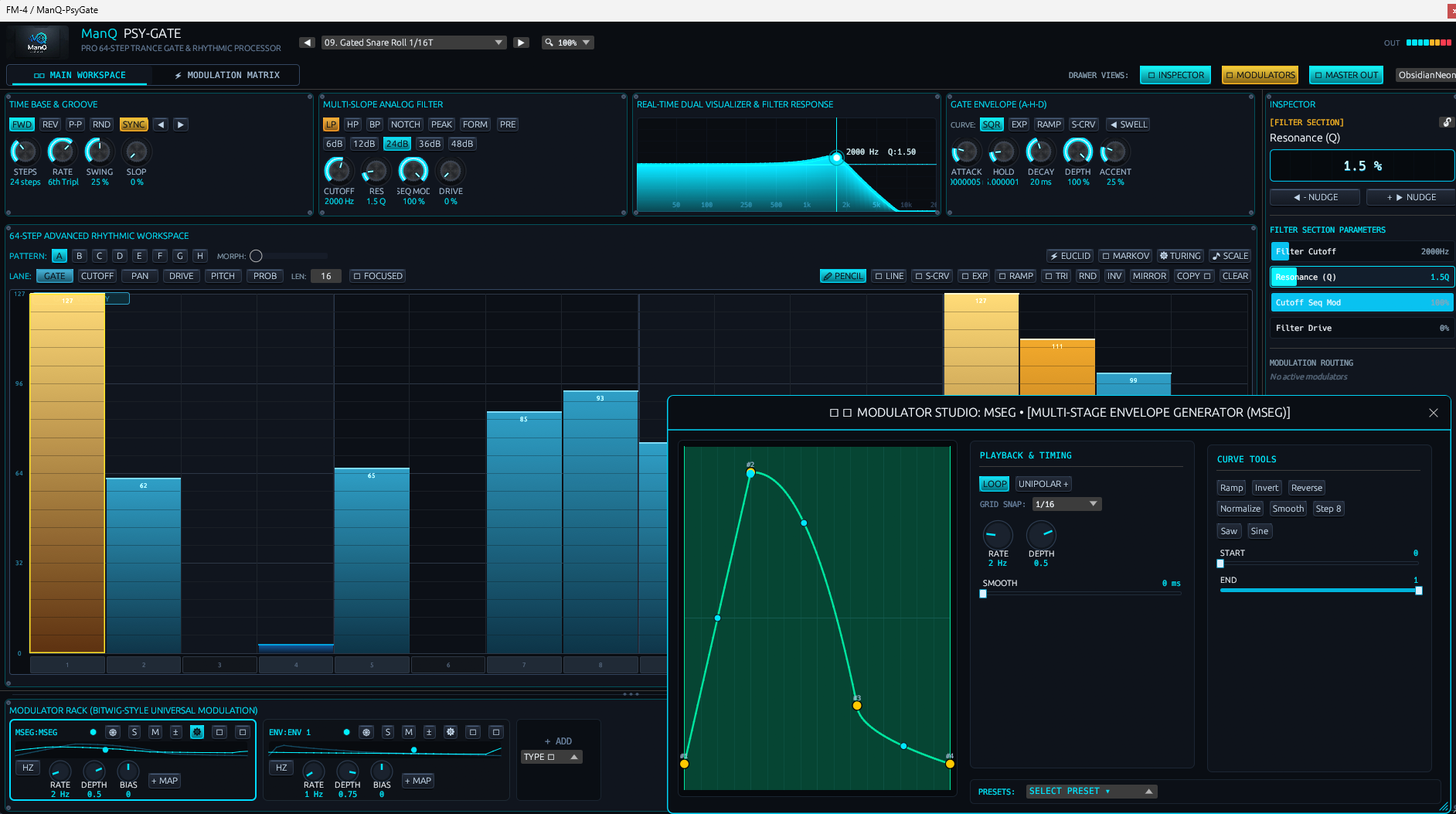

ManQ-PsyGate Main Interface Presentation
Figure 1.0: ManQ-PsyGate flagship interface with 64-step grid, analog multi-mode filter, drawer modulators, and contextual inspector.

VIDEO DEMONSTRATION & WORKFLOW WALKTHROUGH

Interactive Tour: Real-time demonstration showing step-sequenced gating, filter sweeping, polymetric lane length adjustments, and modulation matrix shaping.

Deep Architectural Breakdown

ManQ-PsyGate is engineered to surpass the limitations of legacy volume choppers. By combining an analog-modeled multi-mode filter, per-step pan, saturation drive, pitch transposition, and probability engines directly into a lock-free real-time DSP core, PsyGate transforms static audio into animated, dynamic musical textures.

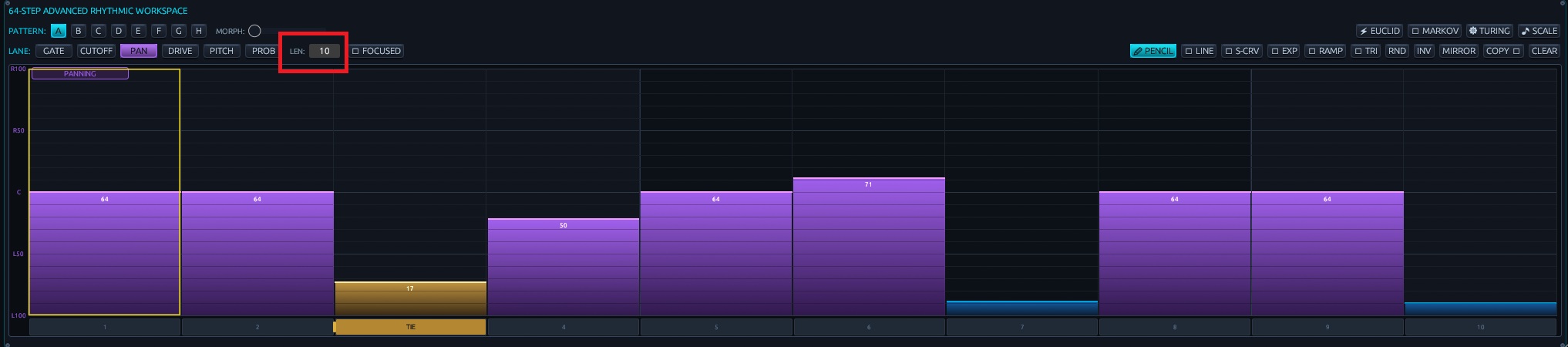

Polyrhythmic Multi-Lane Sequencer Editing
Figure 1.1: Polyrhythmic multi-metric lane editing. Each parameter lane operates with independent loop lengths from 2 to 64 steps for evolving, polymetric phasing.

🎛️ 6 Independent Parameter Lanes

Each parameter lane functions as an independent sequencer loop with customizable step lengths (2 to 64 steps):

  • Gate / Velocity: Controls VCA envelope depth with dedicated Legato Tie toggles.
  • Cutoff: Multiplies or modulates analog filter cutoff frequencies per step.
  • Pan: Hard and soft stereo balance positioning per step.
  • Drive: Step-sequenced non-linear harmonic saturation.
  • Pitch: Monophonic transposition (-24 to +24 semitones) for hypnotic arpeggios.
  • Probability: Generative step-trigger likelihood (0% to 100%).

⚡ Universal Modulation Matrix

High-legibility cross-point grid connecting 8 modulation sources to all synthesis targets. Features high-contrast rotary depth dials and dedicated transfer curve buttons:

  • LIN ∿ (Linear 1:1 direct tracking)
  • EXP ² (Cubic exponential punch for percussive snaps)
  • LOG √ (Cube root rapid attack onset & wide plateau)
  • SIG ⚡ (Sigmoid S-curve with abrupt transitional threshold)
  • ST4 ☷ / ST8 ☷ (Quantized 4-level and 8-level staircases)

🧬 Generative Algorithmic Tools

Built-in algorithmic sequence generators allow instant creation of complex musical patterns:

  • Turing Machine: Shift-register algorithm with controllable mutation entropy.
  • Markov Groove: Probabilistic transition matrices modeled after human groove.
  • Euclidean Rhythms: Mathematically even pulse distribution.
  • Invert & Shift: Instant vertical flipping and circular time rotation.

🔬 Analog ZDF Multi-Mode Filter

Zero-Delay Feedback state-variable analog filter circuit with pre/post gate routing:

  • Low-Pass, High-Pass, Band-Pass, Notch, Peak (6 to 48 dB/Oct)
  • Formant Vocal Engine: Dual parallel vocal resonators morphing A-E-I-O-U.
  • Filter Drive: Asymmetrical saturation warmth and tape-style drive.

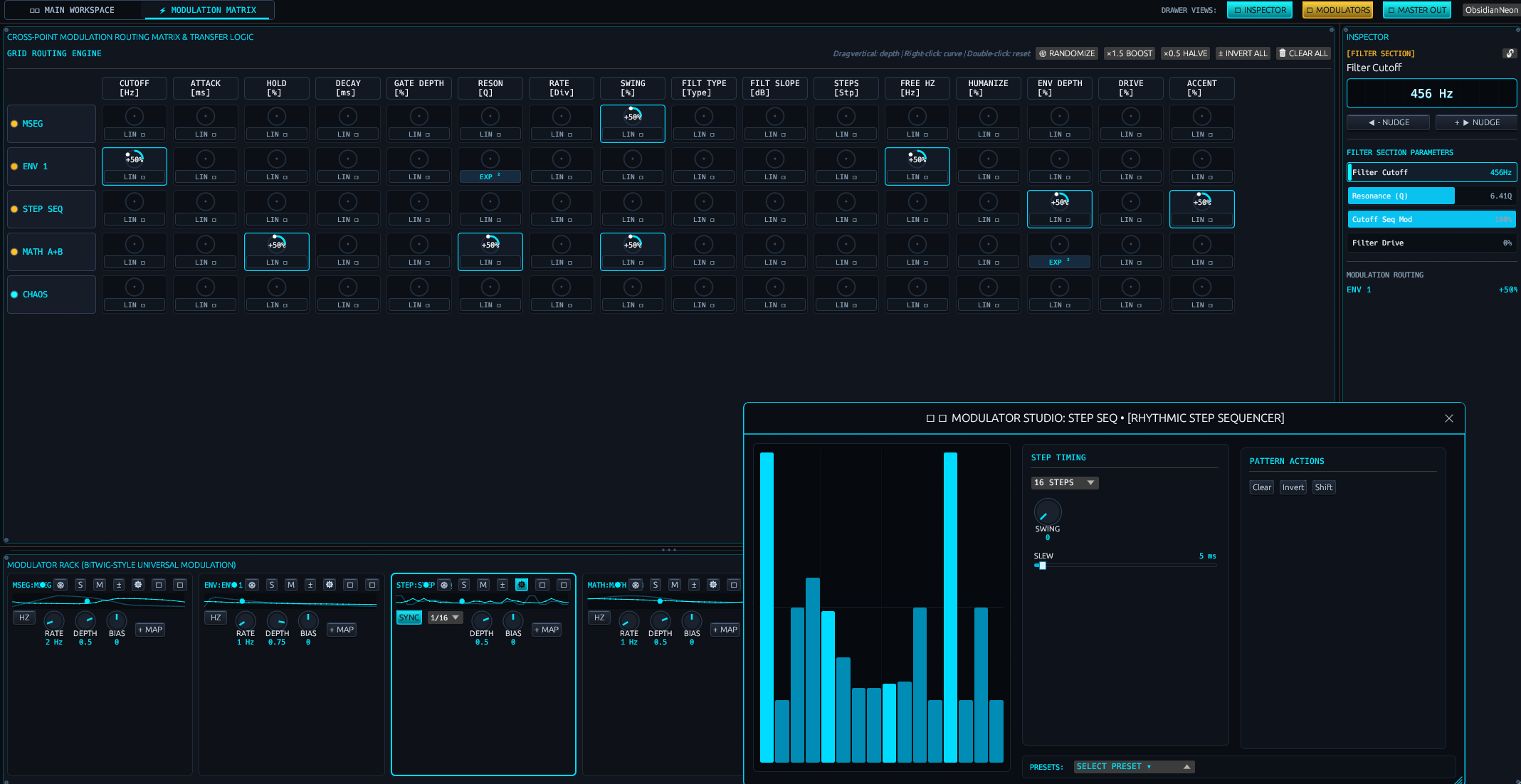

Universal Modulation Matrix Workspace
Figure 1.2: Master Modulation Matrix cross-point workspace. Each socket features real-time excursion needles, bipolar depth percentage adjustments, and dedicated transfer curve shape buttons.

Installation & Compatibility
